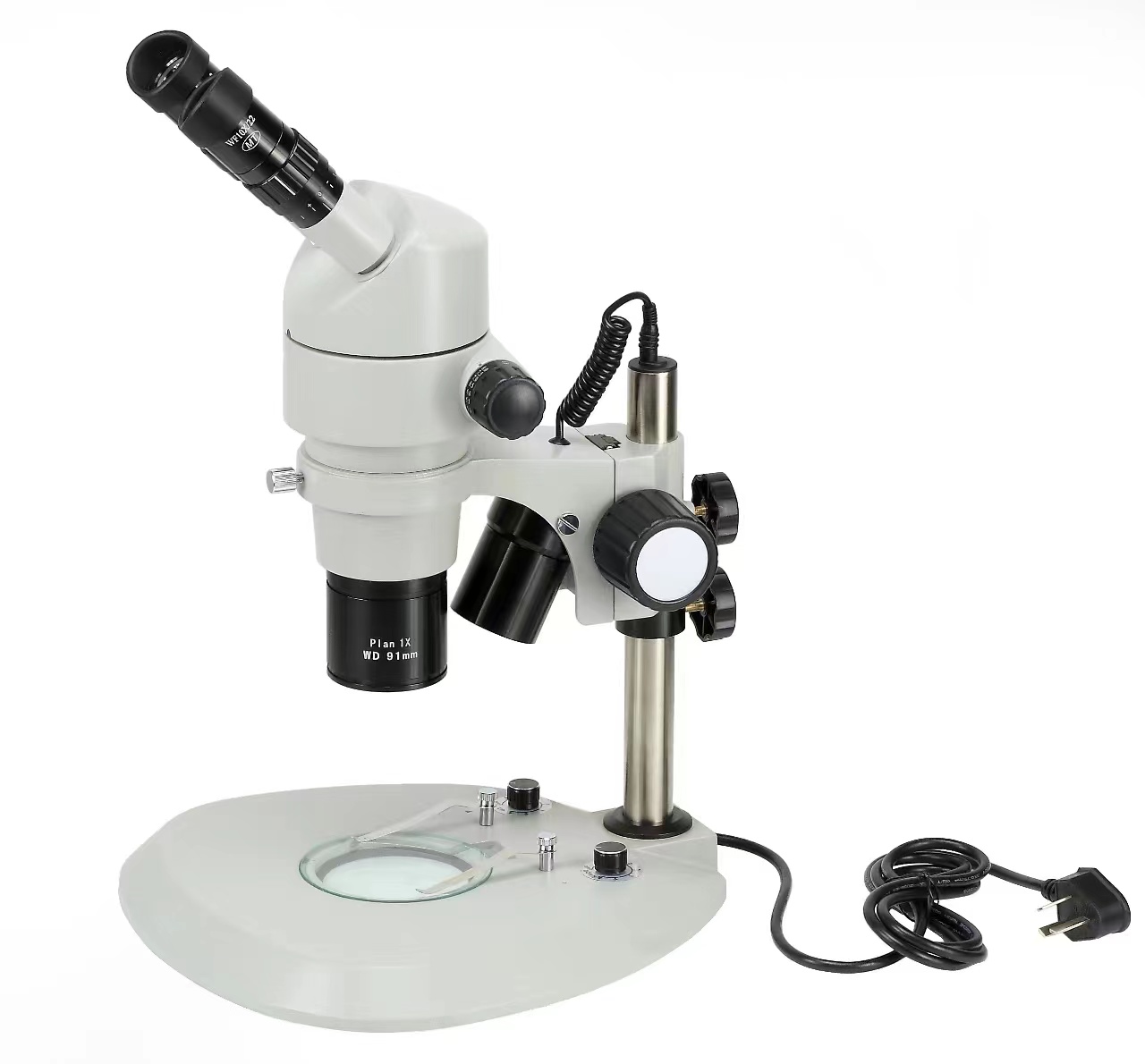

平行光显微镜
● 包括XPZ0880(双目),XPZ0880T(三目)。● 采用平行光学系统,主体连续变倍范围0.8X~8X。● 从高倍到低倍连续变焦全程清晰无闪动 ,大景深, 长工作距离,附件丰富。● 广泛用于科学研究 、生物 、医药 、环境 、农林 、公 安、微电子、半导体等高精度方面的要求。 XPZ0880 (binocular) and XPZ0880T (trinocular)。 Parallel optical system, zoom body magnification range:0.8X~8X。 Non-flash in focus course while from high to low magnification, large depth of field, long working distance, available to attach various accessories。 Widely used in science research, modern biology, medicine,environment, farming, police, micro- electronics, semiconductors and etc which require high precision。
订购信息 | |
名称 | 货号 |
平行光系统显微镜 | XQ-XPZ-0880 |
技术参数 | |
变倍方式 / Optical zoom | 平行光路系统,0.8X~8X连续变倍镜体 / Parallel optical system, 0.8X~8X zoom body |
放大倍率 / Magnification | 标准总放大倍率8X~80X ,最大放大倍率360X Standard total magnification: 8X~80X, the max. magnification: 360X. |
目镜 / Eyepiece | 高眼点广角目镜 (10X,Φ22 mm) High eye point and wide field eyepieces (10X,Φ22mm). |
物镜 / Objective | 1X平场物镜 / 1X plane objective |
工作距离 / WD | 91mm |
瞳距调节范围(用10X目镜) Interpupillary distance adjustment range (10X eyepiece) | 52mm~76mm |
视度调节范围 / Diopter adjustment range | ±6 Diopter |
调焦范围 / Focus range | 50mm(方立柱时为100mm / Track stand: 100mm) |
双目镜筒 / Binocular eyetubes | 倾斜45 °/ Inclined 45 ° |
支架与主机配合尺寸 The holder and the head matching dimension | Φ76mm |
立柱中心到支架中心尺寸 Distance between the center of the pole and the center of the holder | 140mm |
圆立柱尺寸 / Diameter of the pole | Φ25mm |
中心工作台直径 / Diameter of the center working stage | Φ95mm |
